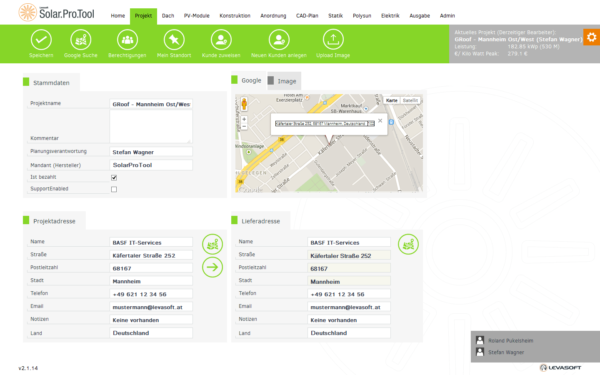

Project
Enter the master data of the project and define the project address easily with Google
Process Infographic Post Type
Roof
Select the roof shape and enter the required dimensions. You can also easily draw the roof in the MapDrawer
PV Modules
Select either the module you want from the database or from your favorites
Design
Depending on the roofing, selected in “Roof”, you can select suitable components here
Position
Here you can see the finished layout on the roof. You can make adjustments and always know that the desired layout can be installed in exactly the same way
Statics
Check how the loads, calculated in the background, are distributed throughout the mounting system, and how the load-capacities of the individual components looks like.
E-Designer
Choose the manufacturers of inverters and storage, select and combine existing consumption profiles or upload your own consumption profile and let the E-Designer find the best Variation. The result of the simulation provides detailed results.
Electrics
Connect the modules easily and effortlessly. Cable paths, inverter banks and grounding can also be planned here.
Output
Here you can find the bill of material list for your project and create the project report in the version you want.
